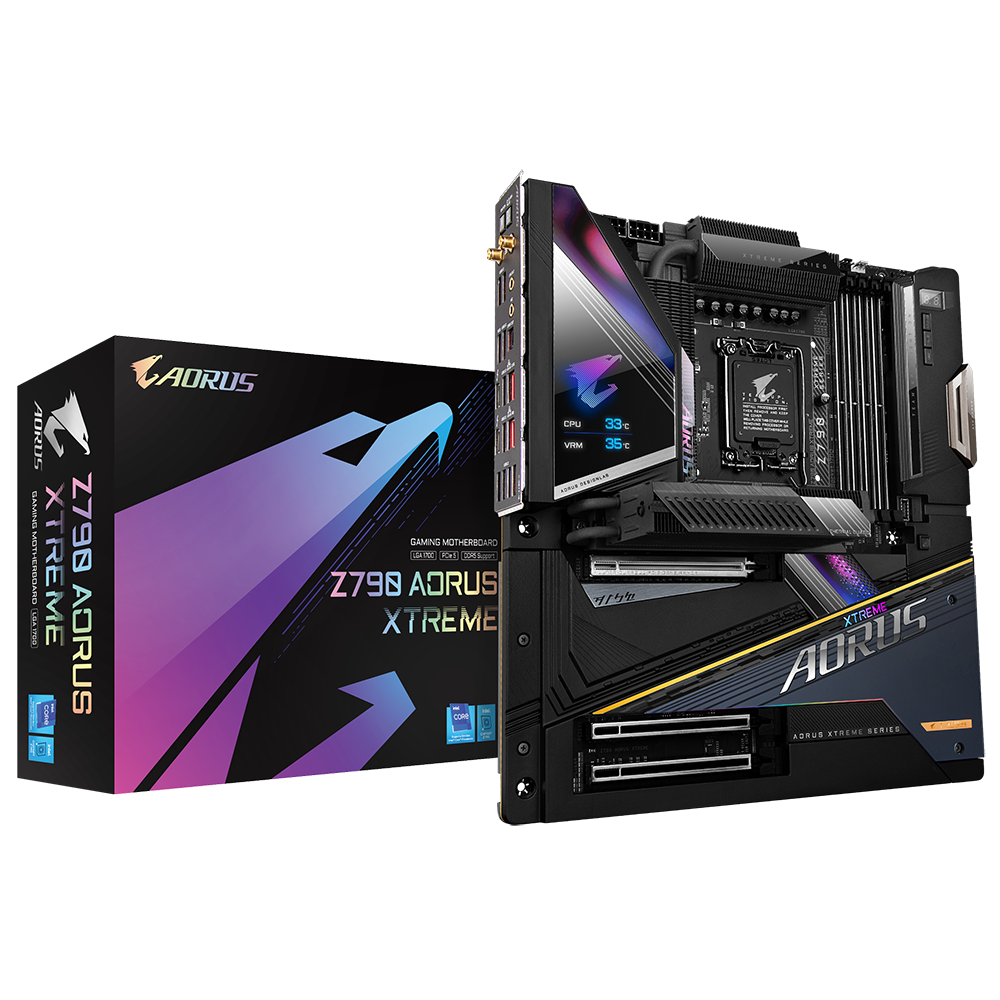

Gigabyte

E-ATX

Socket LGA1700: Hỗ trợ cho bộ xử lý Intel® Core ™, Pentium® Gold và Celeron® thế hệ thứ 13 và 12

Intel® Z790 Express Chipset

4 x DDR5 DIMM

Support for DDR5 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules

128 GB (32 GB single DIMM capacity)

1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)

1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)

4 x SATA 6Gb/s connectors

1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)

1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)

1 x M.2 connector (Socket 3, M key, type 2280/2260 SATA and PCIe 4.0 x4/ x2 SSD support) (M2M_SB)

ESS ES9280AC DAC chip + 2 ESS ES9080

DTS® Sound Unbound™

High Definition Audio

2-channel

Marvell® AQtion AQC107 10GbE LAN (LAN1)

Intel® 2.5GbE (LAN2)

Intel® Killer™ Wi-Fi 6E AX1690

10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps (LAN1)

2.5 Gbps/1 Gbps/100 Mbps (LAN2)

1 x Q-Flash Plus button

1 x OC Ignition button

2 x SMA antenna connectors (2T2R)

2 x Thunderbolt™ 4 connectors (USB Type-C® ports, with USB 3.2 Gen 2 support)

10 x USB 3.2 Gen 2 Type-A ports (red)

2 x RJ-45 ports

1 x optical S/PDIF Out connector

2 x audio jacks

* The mic in jack supports only mono microphone input

Chipset+Intel® Thunderbolt™ 4 Controller:

2 x USB Type-C® ports on the back panel, with USB 3.2 Gen 2 support

Chipset:

1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header

6 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset+USB 3.2 Gen 2 Hub:

4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset+USB 3.2 Gen 1 Hub:

4 x USB 3.2 Gen 1 ports available through the internal USB headers

Chipset+2 USB 2.0 Hubs:

4 x USB 2.0/1.1 ports available through the internal USB headers

1 x CPU fan header

1 x water cooling CPU fan header

4 x system fan headers

4 x system fan/water cooling pump headers

1 x noise detection header

2 x integrated extension cable headers for addressable and RGB LED strips

4 x SATA 6Gb/s connectors

5 x M.2 Socket 3 connectors

1 x front panel header

1 x USB Type-C® header, with USB 3.2 Gen 2x2 support

2 x USB 3.2 Gen 1 headers

1 x USB 2.0/1.1 header

2 x temperature sensor headers

1 x power button

1 x reset button

1 x Clear CMOS button

30.5cm x 28.5cm

1 x 24-pin ATX main power connector

2 x 8-pin ATX 12V power connectors
