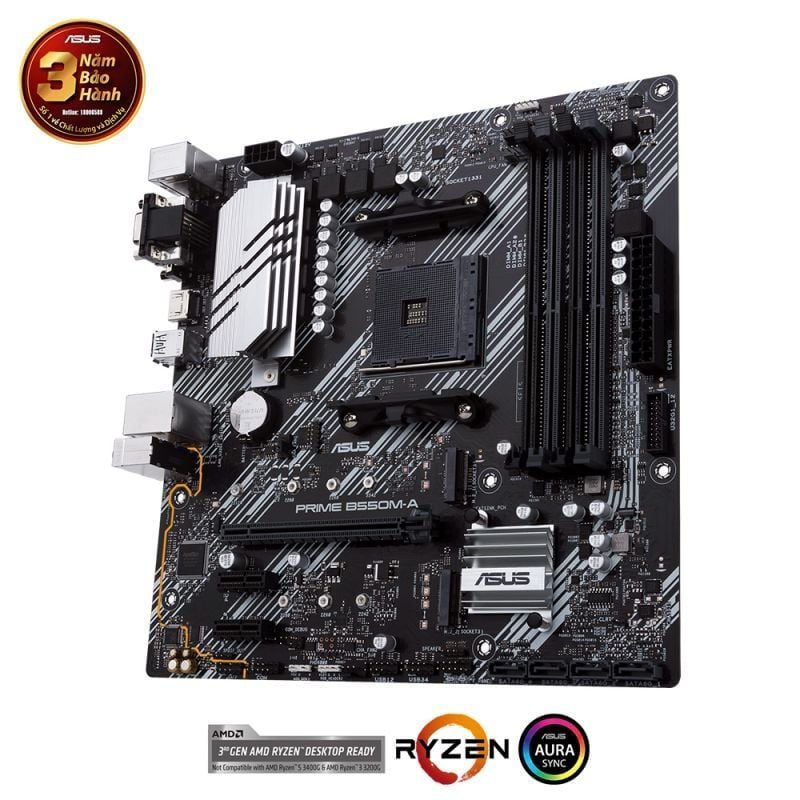

Mainboard ASUS PRIME B550M - A
>> Mã sản phẩm: Mainboard ASUS PRIME
- >> Tình trạng:
- >> Đơn giá: 2.060.000 vnd
-
Socket: AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop
Kích thước: mATX
Khe cắm RAM: 4 khe (Tối đa 128GB)
Khe cắm mở rộng: 1 x PCIe 4.0 x16 (x16 mode),1 x PCIe 3.0 x16 (x16 mode), 2 x PCIe 3.0 x1
Khe cắm ổ cứng: 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports
|
Sản phẩm |
|
|
Tên Hãng |
Asus |
|
Model |
B550M-A |
|
CPU hỗ trợ |
AMD |
|
Chipset |
B550 |
|
RAM hỗ trợ |
4 x DDR4 DIMM Slots ( 128GB ) |
|
Khe cắm mở rộng |
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors,1 x PCIe 4.0 x16 (x16 mode),1 x PCIe 3.0 x16 (x16 mode),AMD B550 Chipset,AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors,2 x PCIe 3.0 x1 |
|
Ổ cứng hỗ trợ |
Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports,AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors : ,AMD B550 Chipset : ,1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support,4 x SATA 6Gb/s port(s),,AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors : ,Support Raid 0, 1, 10,1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support,1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support |
|
Cổng kết nối (Internal) |
1 x CPU OPT Fan connector(s),2 x Aura RGB Strip Headers,1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s),1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode),1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode),1 x 8-pin EATX 12V Power connectors,1 x System panel connector,1 x COM port header,1 x Speaker connector,2 x Chassis Fan connector(s),4 x SATA 6Gb/s connector(s),1 x Clear CMOS jumper(s),1 x CPU Fan connector(s),2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),1 x S/PDIF out header(s),1 x 24-pin EATX Power connector(s),1 x Front panel audio connector(s) (AAFP),1 x Addressable Gen 2 header(s),1 x SPI TPM header |
|
Cổng kết nối (Back Panel) |
2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A),4 x USB 3.2 Gen 1 (blue) Type-A,1 x PS/2 keyboard/mouse combo port(s),1 x LAN (RJ45) port(s),3 x Audio jack(s),1 x DVI-D,1 x D-Sub,1 x HDMI |
|
LAN / Wireless |
Realtek RTL8111H 1Gb Ethernet |
|
Kích cỡ |
mATX Form Factor,9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
|
Socket: AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop
Kích thước: mATX
Khe cắm RAM: 4 khe (Tối đa 128GB)
Khe cắm mở rộng: 1 x PCIe 4.0 x16 (x16 mode),1 x PCIe 3.0 x16 (x16 mode), 2 x PCIe 3.0 x1
Khe cắm ổ cứng: 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports
|
Sản phẩm |
|
|
Tên Hãng |
Asus |
|
Model |
B550M-A |
|
CPU hỗ trợ |
AMD |
|
Chipset |
B550 |
|
RAM hỗ trợ |
4 x DDR4 DIMM Slots ( 128GB ) |
|
Khe cắm mở rộng |
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors,1 x PCIe 4.0 x16 (x16 mode),1 x PCIe 3.0 x16 (x16 mode),AMD B550 Chipset,AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors,2 x PCIe 3.0 x1 |
|
Ổ cứng hỗ trợ |
Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports,AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors : ,AMD B550 Chipset : ,1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support,4 x SATA 6Gb/s port(s),,AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors : ,Support Raid 0, 1, 10,1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support,1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support |
|
Cổng kết nối (Internal) |
1 x CPU OPT Fan connector(s),2 x Aura RGB Strip Headers,1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s),1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode),1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode),1 x 8-pin EATX 12V Power connectors,1 x System panel connector,1 x COM port header,1 x Speaker connector,2 x Chassis Fan connector(s),4 x SATA 6Gb/s connector(s),1 x Clear CMOS jumper(s),1 x CPU Fan connector(s),2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),1 x S/PDIF out header(s),1 x 24-pin EATX Power connector(s),1 x Front panel audio connector(s) (AAFP),1 x Addressable Gen 2 header(s),1 x SPI TPM header |
|
Cổng kết nối (Back Panel) |
2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A),4 x USB 3.2 Gen 1 (blue) Type-A,1 x PS/2 keyboard/mouse combo port(s),1 x LAN (RJ45) port(s),3 x Audio jack(s),1 x DVI-D,1 x D-Sub,1 x HDMI |
|
LAN / Wireless |
Realtek RTL8111H 1Gb Ethernet |
|
Kích cỡ |
mATX Form Factor,9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
